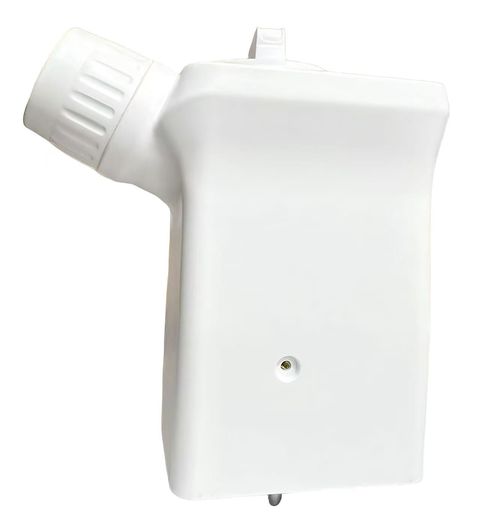

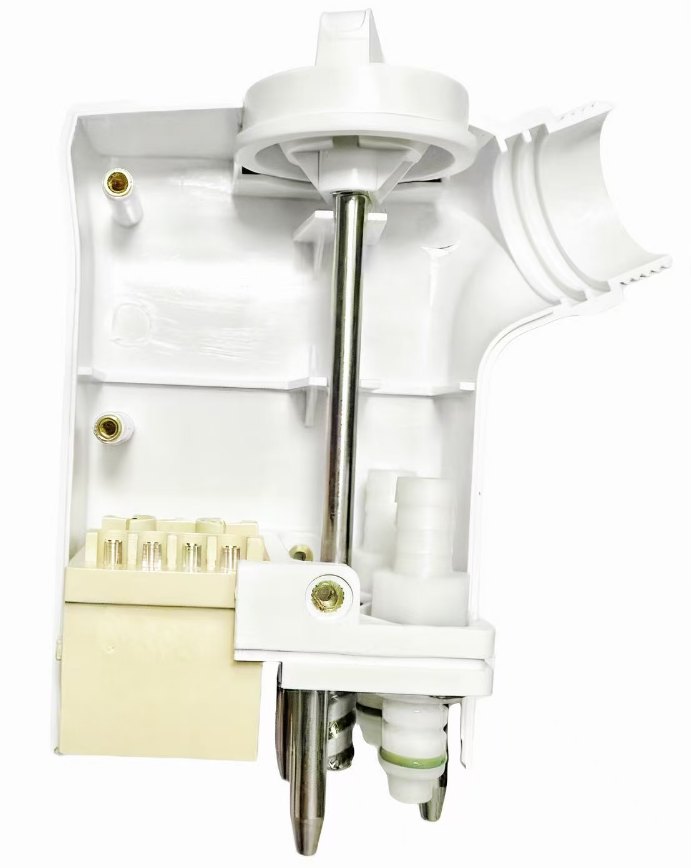

A3 Series Twist-Lock Handpiece-End Connector
The A3 Series Twist-Lock connector — the handpiece-side half of the A3 interface — is supplied in white. The A3 is the white version of the A1 twist-lock family, mechanically identical but moulded in white to match light-coloured handpieces and equipment. The quarter-turn collar and panel-mount frame are unchanged.
- Matched handpiece-end connector for white or light-coloured handpieces and clinical devices where the connector should visually disappear into the housing
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts carried in a single mated pair
- White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-A3-WH-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The A3 Series Twist-Lock connector — the handpiece-side half of the A3 interface — is supplied in white. The A3 is the white version of the A1 twist-lock family, mechanically identical but moulded in white to match light-coloured handpieces and equipment. The quarter-turn collar and panel-mount frame are unchanged.
It is used on white or light-coloured handpieces and clinical devices where the connector should visually disappear into the housing. Two heavy-duty power paths and a multi-pin signal block share one keyed housing, so a single mated pair carries both supply and control. Clinics and OEMs that specify white housings can keep one mechanical design across a product line instead of stocking a second connector.
Specify the pair by series, not by part: A3 plugs and handpiece-end connectors are checked as a set before packing.
Specifications
| Model | KMD-A3-WH-H |
|---|---|
| Series | A3 |
| Type | Handpiece-end connector |
| Pin configuration | multi-pin signal block + power contacts |
| Housing colour | White |
| Tail / hose | flexible or rigid hose |
| Mating half | A3 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for white or light-coloured handpieces and clinical devices where the connector should visually disappear into the housing. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the handpiece-end half. The mating plug half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
