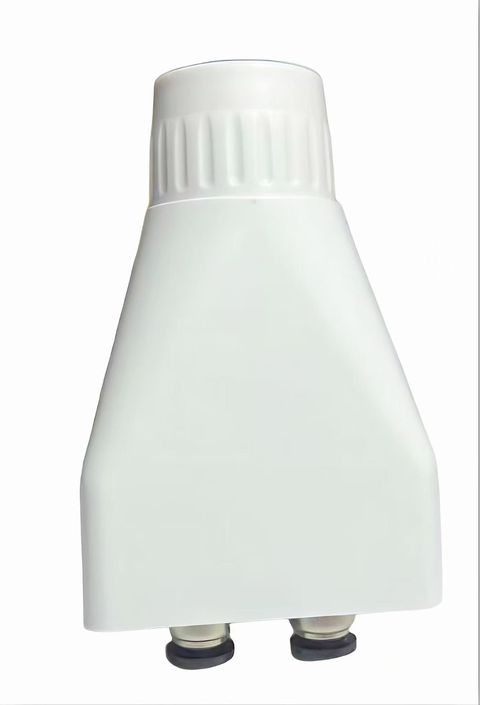

C1 Series Water-Nozzle Handpiece-End Connector
The C1 Series Water-Nozzle connector — the handpiece-side half of the C1 interface — is supplied in white body / orange button. The C1 integrates a water nozzle into the connector body, so the fluid line and the electrical paths mate in one action. The release is a coloured push-button rather than a twist collar, which is faster to operate with wet hands.
- Matched handpiece-end connector for hydro-facial
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts + water nozzle carried in a single mated pair
- White body / orange button housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-C1-OR-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The C1 Series Water-Nozzle connector — the handpiece-side half of the C1 interface — is supplied in white body / orange button. The C1 integrates a water nozzle into the connector body, so the fluid line and the electrical paths mate in one action. The release is a coloured push-button rather than a twist collar, which is faster to operate with wet hands.
It is used on hydro-facial, water-light and similar systems that carry a water line in the same handpiece cable. Electrical contacts and the water path are kept in separate channels inside the housing; the nozzle seats before the contacts engage, so the fluid connection is made first. It removes a separate quick-coupling from the handpiece, one less part to leak, one less step for the operator.
Order it together with its mating half — C1 plugs and handpiece-end connectors are sold as a matched pair, so keying and pin-out always line up.
Specifications
| Model | KMD-C1-OR-H |
|---|---|
| Series | C1 |
| Type | Handpiece-end connector |
| Pin configuration | multi-pin signal block + power contacts + water nozzle |
| Housing colour | White body / orange button |
| Tail / hose | flexible or rigid hose |
| Mating half | C1 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for hydro-facial, water-light and similar systems that carry a water line in the same handpiece cable. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the handpiece-end half. The mating plug half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
