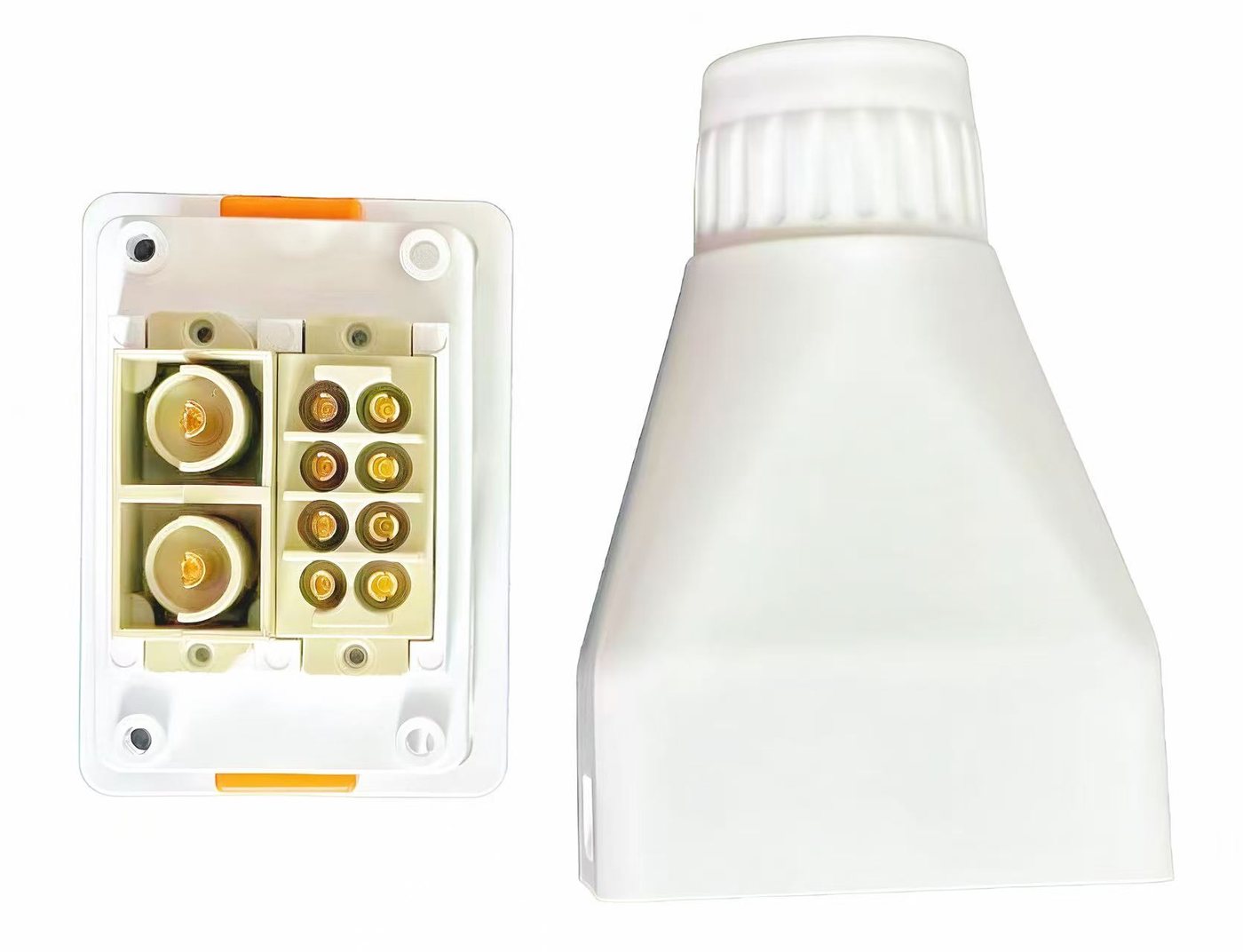

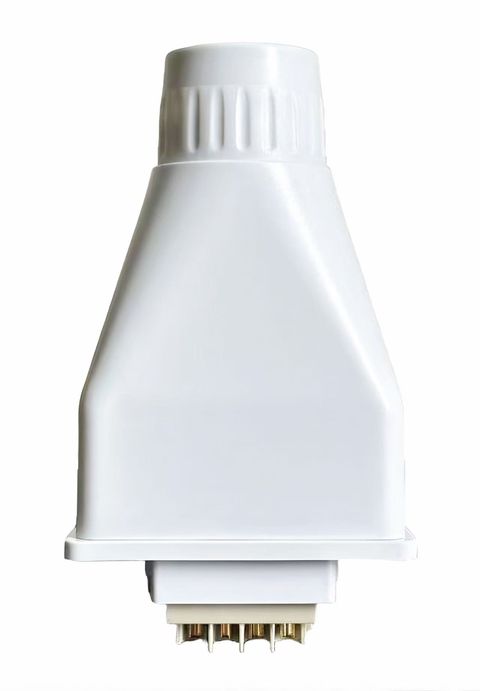

C2 Series No-Nozzle Plug-in Connector
The C2 Series No-Nozzle connector — the plug half of the C2 interface — is supplied in black / white. The C2 uses the same orange push-button release and body moulding as the C1 but is supplied without the water nozzle. It is the dry variant for machines that share a housing platform but do not circulate fluid.
- Matched plug-in connector for dry handpieces on platforms whose housing is shared with a water-carrying model
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts, no water nozzle carried in a single mated pair
- Black / White housing; hose only
- OEM colour, logo and pin-out options on request
Request quotation for KMD-C2-OR-NW
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The C2 Series No-Nozzle connector — the plug half of the C2 interface — is supplied in black / white. The C2 uses the same orange push-button release and body moulding as the C1 but is supplied without the water nozzle. It is the dry variant for machines that share a housing platform but do not circulate fluid.
It is used on dry handpieces on platforms whose housing is shared with a water-carrying model. Because there is no fluid path, the internal volume is free for a larger signal block and more generous creepage between the power contacts. It lets an OEM use one housing and one cable assembly across wet and dry models, changing only the connector variant.
The mating half is a separate part number; ordering both together is the only way to guarantee the keying and contact block match.
Specifications
| Model | KMD-C2-OR-NW |
|---|---|
| Series | C2 |
| Type | Plug-in connector |
| Pin configuration | multi-pin signal block + power contacts, no water nozzle |
| Housing colour | Black / White |
| Tail / hose | hose only |
| Mating half | C2 handpiece-end |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for dry handpieces on platforms whose housing is shared with a water-carrying model. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the plug half. The mating handpiece-end half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
