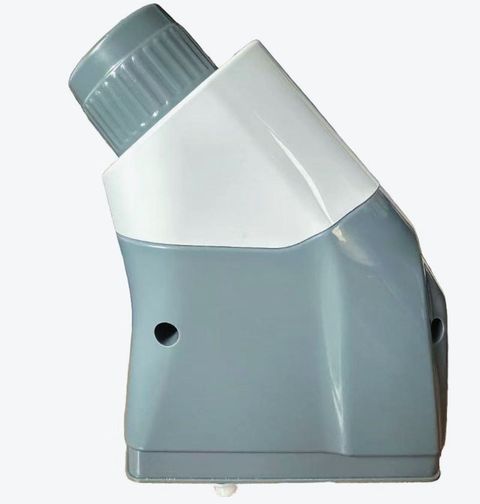

D2 Series Compact Handpiece-End Connector
The D2 Series Compact connector — the handpiece-side half of the D2 interface — is supplied in grey. The D2 is the D1 layout moulded in grey, for handpieces and machine housings that use a grey colour scheme. Dimensions and mating geometry are unchanged from the D1.
- Matched handpiece-end connector for grey-housed handpieces and OEM platforms that colour-match their connectors to the device
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts carried in a single mated pair
- Grey housing; flexible hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-D2-GY-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The D2 Series Compact connector — the handpiece-side half of the D2 interface — is supplied in grey. The D2 is the D1 layout moulded in grey, for handpieces and machine housings that use a grey colour scheme. Dimensions and mating geometry are unchanged from the D1.
It is used on grey-housed handpieces and OEM platforms that colour-match their connectors to the device. The same split power-and-signal arrangement applies, with the signal block on its own shelf inside the shell. Colour matching is a small thing that makes a device look designed rather than assembled from parts.
The mating half is a separate part number; ordering both together is the only way to guarantee the keying and contact block match.
Specifications
| Model | KMD-D2-GY-H |
|---|---|
| Series | D2 |
| Type | Handpiece-end connector |
| Pin configuration | multi-pin signal block + power contacts |
| Housing colour | Grey |
| Tail / hose | flexible hose |
| Mating half | D2 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for grey-housed handpieces and OEM platforms that colour-match their connectors to the device. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the handpiece-end half. The mating plug half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
