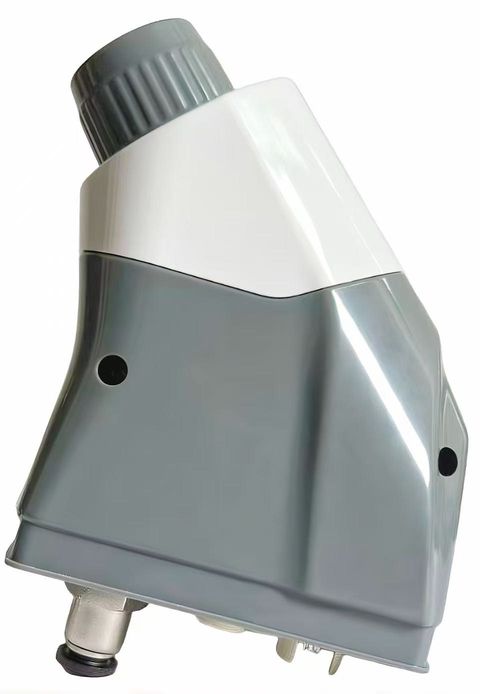

D2808 Series 808 nm Handpiece-End Connector
The D2808 Series 808 nm connector — the handpiece-side half of the D2808 interface — is supplied in grey. The D2808 is the grey version of the D1808, for 808 nm handpieces on machines with grey housings and rigid tube tails. The electrical layout is the 808 pattern; only the moulding colour changes.
- Matched handpiece-end connector for 808 nm diode-laser platforms with grey housings and rigid-tube handpiece tails
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts carried in a single mated pair
- Grey housing; rigid tube
- OEM colour, logo and pin-out options on request
Request quotation for KMD-D2808-GY-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The D2808 Series 808 nm connector — the handpiece-side half of the D2808 interface — is supplied in grey. The D2808 is the grey version of the D1808, for 808 nm handpieces on machines with grey housings and rigid tube tails. The electrical layout is the 808 pattern; only the moulding colour changes.
It is used on 808 nm diode-laser platforms with grey housings and rigid-tube handpiece tails. Power contacts and the signal block are separated inside the shell, and the keyed body prevents a partial or reversed mate. It keeps a grey equipment family visually consistent without changing the handpiece-end half.
Order it together with its mating half — D2808 plugs and handpiece-end connectors are sold as a matched pair, so keying and pin-out always line up.
Specifications
| Model | KMD-D2808-GY-H |
|---|---|
| Series | D2808 |
| Type | Handpiece-end connector |
| Pin configuration | multi-pin signal block + power contacts |
| Housing colour | Grey |
| Tail / hose | rigid tube |
| Mating half | D2808 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for 808 nm diode-laser platforms with grey housings and rigid-tube handpiece tails. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the handpiece-end half. The mating plug half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
