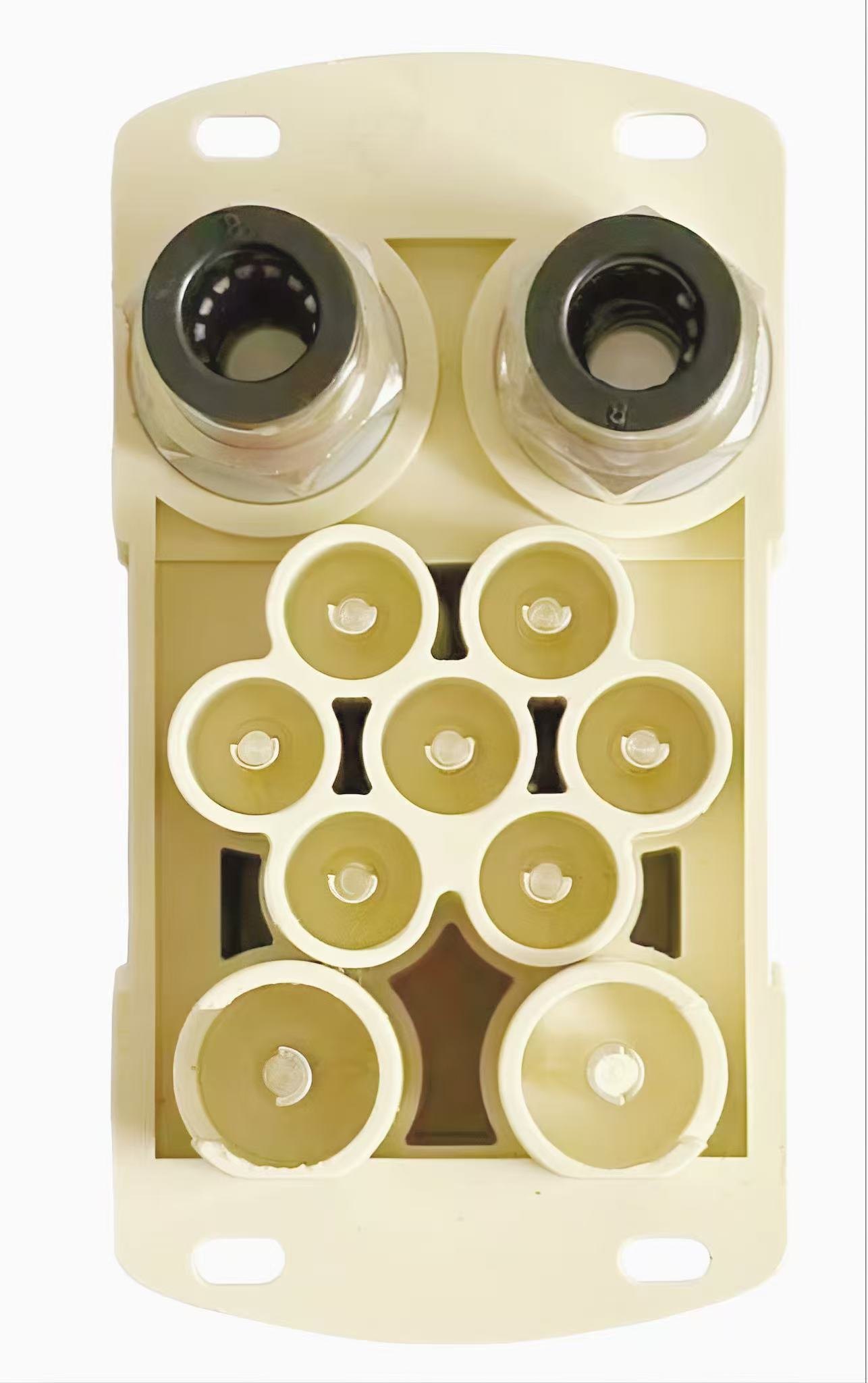

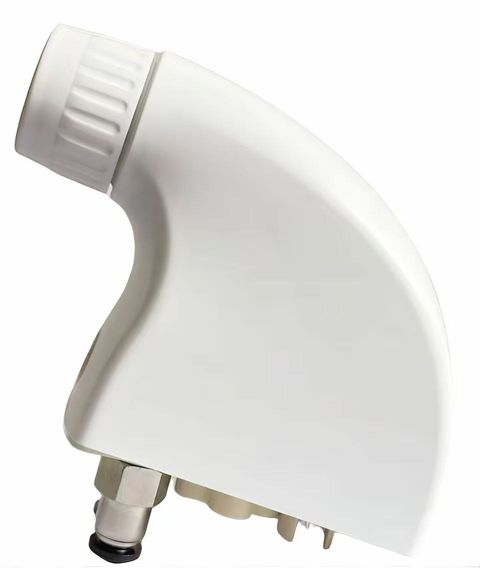

D3 Series Right-Angle Handpiece-End Connector
The D3 Series Right-Angle connector — the handpiece-side half of the D3 interface — is supplied in white. The D3 turns the cable exit through a right angle, so the cable leaves parallel to the handpiece instead of projecting behind it. That matters on compact handpieces and on machines where the handpiece sits in a cradle.
- Matched handpiece-end connector for handpieces with a short tail or a cramped rear housing
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts, right-angle body carried in a single mated pair
- White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-D3-WH-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The D3 Series Right-Angle connector — the handpiece-side half of the D3 interface — is supplied in white. The D3 turns the cable exit through a right angle, so the cable leaves parallel to the handpiece instead of projecting behind it. That matters on compact handpieces and on machines where the handpiece sits in a cradle.
It is used on handpieces with a short tail or a cramped rear housing, where a straight connector would foul the cable. The right-angle body uses the same power-and-signal split; the bend is in the housing, not in the cable, so the cable is not forced against its minimum bend radius. It solves a mechanical problem, cable strain and clearance, without changing the electrical interface.
Specify the pair by series, not by part: D3 plugs and handpiece-end connectors are checked as a set before packing.
Specifications
| Model | KMD-D3-WH-H |
|---|---|
| Series | D3 |
| Type | Handpiece-end connector |
| Pin configuration | multi-pin signal block + power contacts, right-angle body |
| Housing colour | White |
| Tail / hose | flexible or rigid hose |
| Mating half | D3 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
