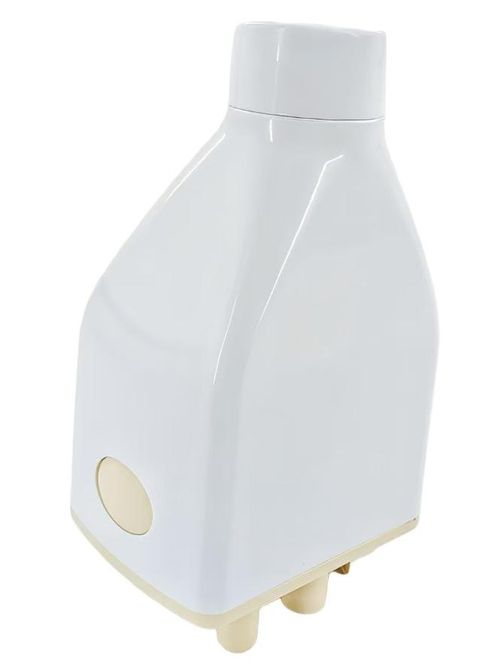

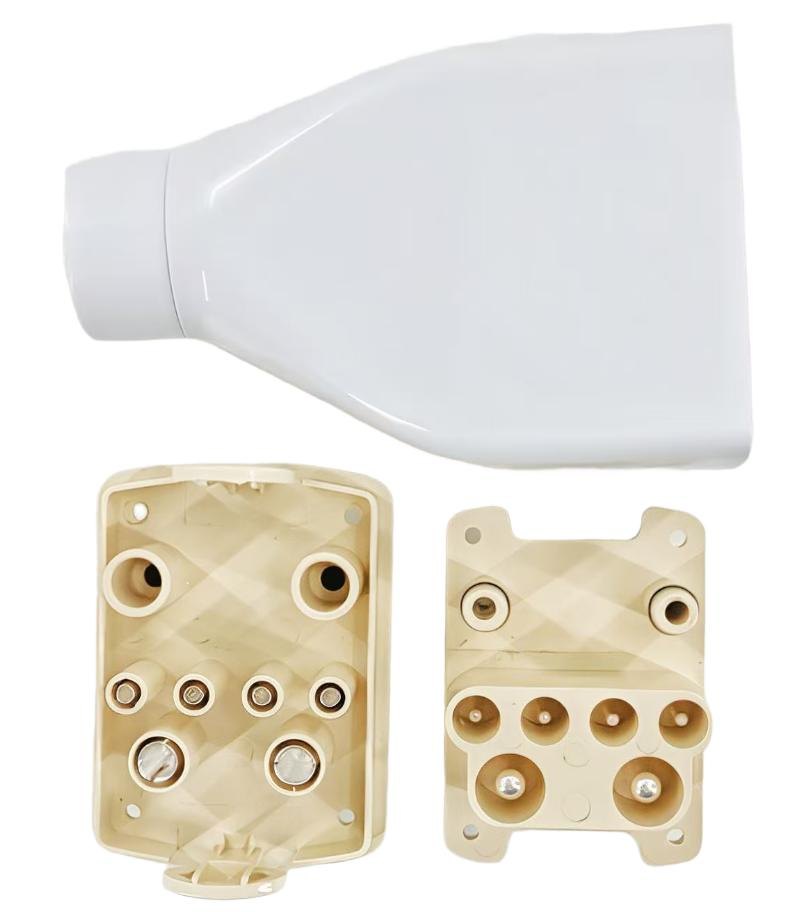

F1 Series 6-Pin Plug-in Connector
The F1 Series 6-Pin connector — the plug half of the F1 interface — is supplied in white. The F1 is a six-pin connector built for eyebrow-washing machines and other compact handpieces that need a small, low-profile interface rather than a full power-plus-signal block.
- Matched plug-in connector for compact handpiece platforms across the beauty-device range
- Keyed shell — mates one way only, no reversed insertion
- 6 signal + power contacts carried in a single mated pair
- White housing; connector only
- OEM colour, logo and pin-out options on request
Request quotation for KMD-F1-6P
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The F1 Series 6-Pin connector — the plug half of the F1 interface — is supplied in white. The F1 is a six-pin connector built for eyebrow-washing machines and other compact handpieces that need a small, low-profile interface rather than a full power-plus-signal block.
It is used on compact handpiece platforms across the beauty-device range. Six contacts cover the typical motor or actuator supply and control lines on a compact device. It is a low-cost, high-volume part for a device class where the connector is small and replaced with the handpiece.
Specify the pair by series, not by part: F1 plugs and handpiece-end connectors are checked as a set before packing.
Specifications
| Model | KMD-F1-6P |
|---|---|
| Series | F1 |
| Type | Plug-in connector |
| Pin configuration | 6 signal + power contacts |
| Housing colour | White |
| Tail / hose | connector only |
| Mating half | F1 handpiece-end |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for compact handpiece platforms across the beauty-device range. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the plug half. The mating handpiece-end half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
