G1M2 Series M2 Platform Handpiece-End Connector

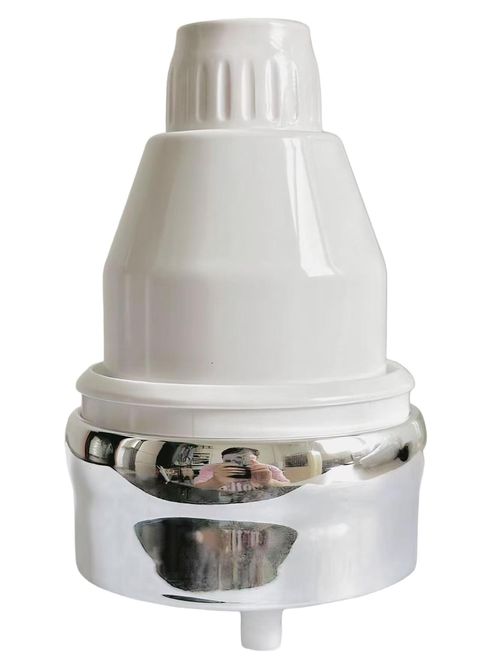

The G1M2 Series M2 Platform connector — the handpiece-side half of the G1M2 interface — is supplied in black / white. The G1M2 follows the M2 platform interface, with a silver-toned finish on the mating face and the same keyed shell used across the G family.
- Matched handpiece-end connector for M2-platform handpieces and compatible OEM machines
- Keyed shell — mates one way only, no reversed insertion

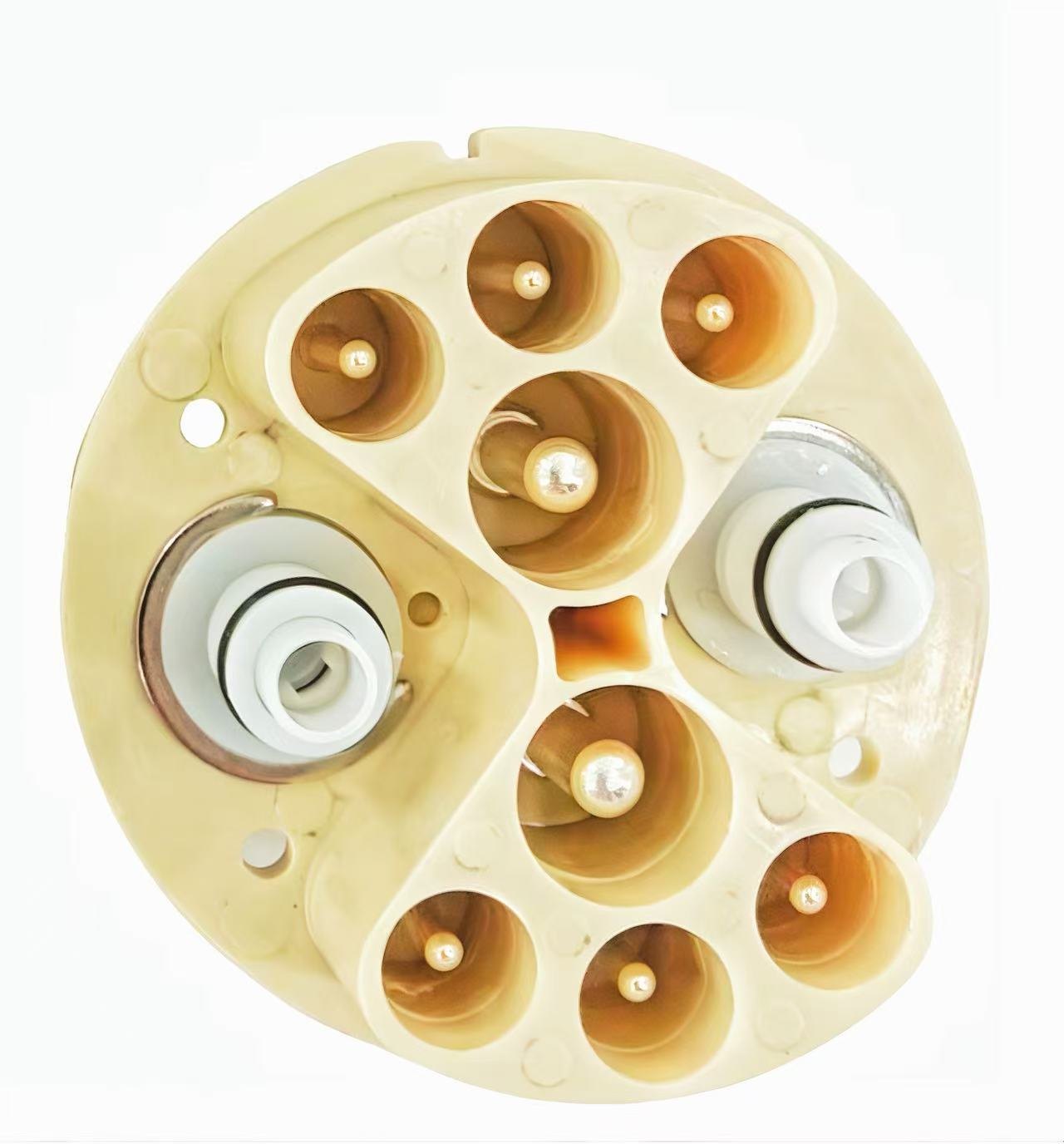

- Multi-pin signal block + power contacts carried in a single mated pair
- Black / White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-G1M2-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The G1M2 Series M2 Platform connector — the handpiece-side half of the G1M2 interface — is supplied in black / white. The G1M2 follows the M2 platform interface, with a silver-toned finish on the mating face and the same keyed shell used across the G family.
It is used on M2-platform handpieces and compatible OEM machines. Power contacts and a multi-pin signal block share the shell, separated internally. It is the part to specify when a machine is built to the M2 platform rather than to a proprietary interface.
The mating half is a separate part number; ordering both together is the only way to guarantee the keying and contact block match.
Specifications
| Model | KMD-G1M2-H |
|---|---|
| Series | G1M2 |
| Type | Handpiece-end connector |
| Pin configuration | multi-pin signal block + power contacts |
| Housing colour | Black / White |
| Tail / hose | flexible or rigid hose |
| Mating half | G1M2 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for M2-platform handpieces and compatible OEM machines. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the handpiece-end half. The mating plug half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
