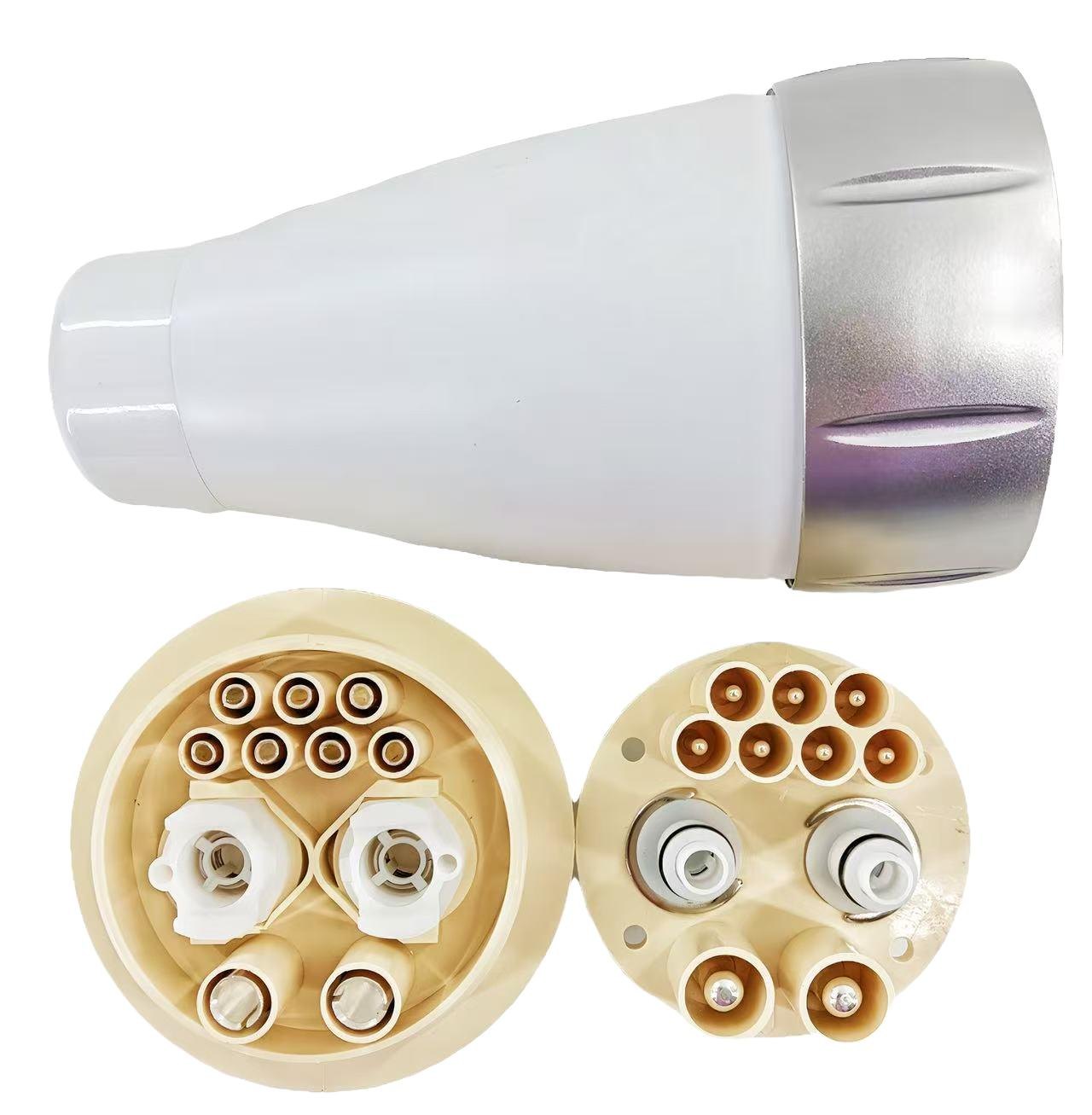

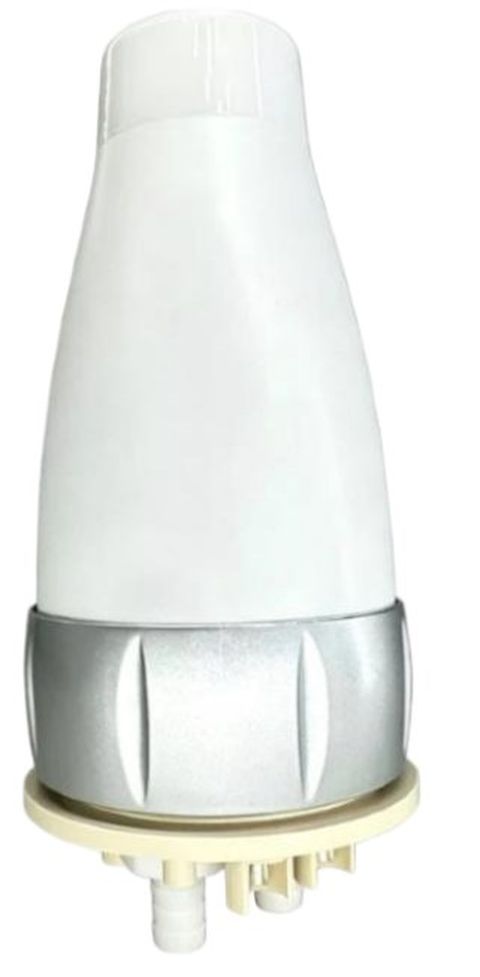

G3M22 Series M22 Platform Plug-in Connector
The G3M22 Series M22 Platform connector — the plug half of the G3M22 interface — is supplied in black / white. The G3M22 is the M22-platform counterpart to the G1M2: same construction logic, different keying and pin arrangement to suit M22 handpieces.
- Matched plug-in connector for M22-platform handpieces and compatible OEM machines
- Keyed shell — mates one way only, no reversed insertion
- Multi-pin signal block + power contacts carried in a single mated pair
- Black / White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-G3M22
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The G3M22 Series M22 Platform connector — the plug half of the G3M22 interface — is supplied in black / white. The G3M22 is the M22-platform counterpart to the G1M2: same construction logic, different keying and pin arrangement to suit M22 handpieces.
It is used on M22-platform handpieces and compatible OEM machines. Power and signal paths are separated inside the housing, and the keyed face prevents cross-mating with the M2 variant. It lets a service partner stock one connector family for both platforms while keeping the two physically incompatible.
Specify the pair by series, not by part: G3M22 plugs and handpiece-end connectors are checked as a set before packing.
Specifications
| Model | KMD-G3M22 |
|---|---|
| Series | G3M22 |
| Type | Plug-in connector |
| Pin configuration | multi-pin signal block + power contacts |
| Housing colour | Black / White |
| Tail / hose | flexible or rigid hose |
| Mating half | G3M22 handpiece-end |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for M22-platform handpieces and compatible OEM machines. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the plug half. The mating handpiece-end half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
