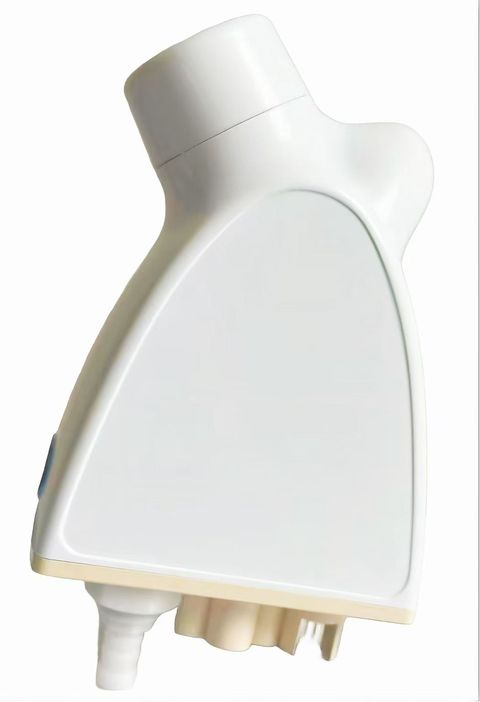

D5 Series 8-Pin Plug-in Connector
The D5 Series 8-Pin connector — the plug half of the D5 interface — is supplied in white. The D5 sits between the compact D1 and the 12-pin D4: eight signal positions plus the power path, in a housing close to the D1 footprint.
- Matched plug-in connector for mid-range handpieces that need more signal lines than the D1 but do not justify a 12-pin interface
- Keyed shell — mates one way only, no reversed insertion
- 8 signal + power contacts carried in a single mated pair
- White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-D5-8P
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The D5 Series 8-Pin connector — the plug half of the D5 interface — is supplied in white. The D5 sits between the compact D1 and the 12-pin D4: eight signal positions plus the power path, in a housing close to the D1 footprint.
It is used on mid-range handpieces that need more signal lines than the D1 but do not justify a 12-pin interface. Eight signal pins cover the usual set of enable, interlock, thermistor and identification lines with room to spare. It is the compromise most OEMs land on when they want headroom without changing the handpiece housing.
Specify the pair by series, not by part: D5 plugs and handpiece-end connectors are checked as a set before packing.
Specifications
| Model | KMD-D5-8P |
|---|---|
| Series | D5 |
| Type | Plug-in connector |
| Pin configuration | 8 signal + power contacts |
| Housing colour | White |
| Tail / hose | flexible or rigid hose |
| Mating half | D5 handpiece-end |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
