E3 Series 10-Pin Handpiece-End Connector

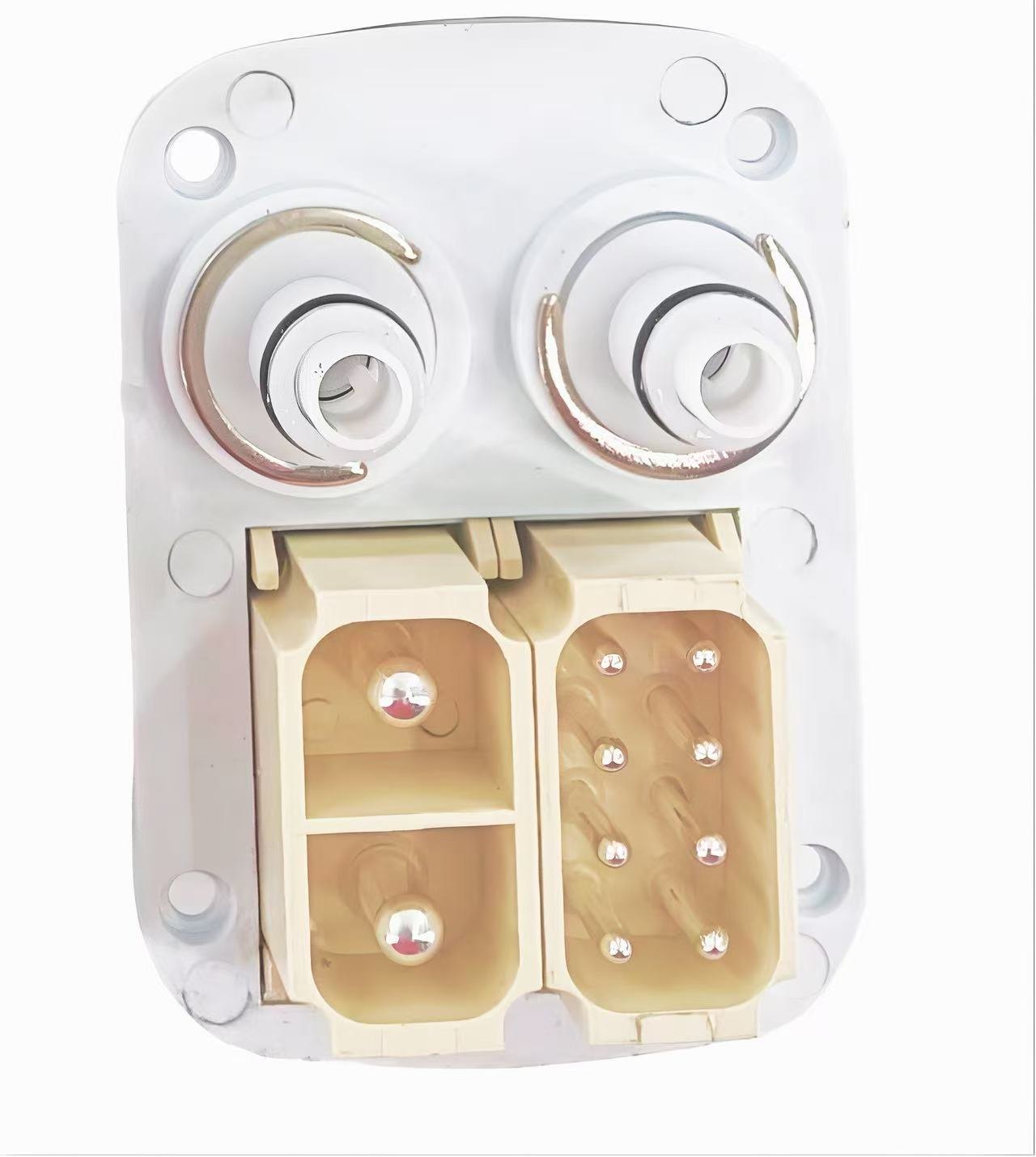

The E3 Series 10-Pin connector — the handpiece-side half of the E3 interface — is supplied in black / white. The E3 carries a ten-position signal block with the power contacts in one keyed shell. It fills the gap between the eight-pin D5 and the twelve-pin D4.
- Matched handpiece-end connector for handpieces that need ten signal lines plus power in a single mated pair
- Keyed shell — mates one way only, no reversed insertion
- 10 signal + power contacts carried in a single mated pair
- Black / White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-E3-10P-H
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The E3 Series 10-Pin connector — the handpiece-side half of the E3 interface — is supplied in black / white. The E3 carries a ten-position signal block with the power contacts in one keyed shell. It fills the gap between the eight-pin D5 and the twelve-pin D4.
It is used on handpieces that need ten signal lines plus power in a single mated pair. Ten signal positions let a handpiece report multiple sensor channels without an auxiliary cable. It is often the drop-in upgrade when a device gains a sensor but keeps its mechanical envelope.
The mating half is a separate part number; ordering both together is the only way to guarantee the keying and contact block match.
Specifications
| Model | KMD-E3-10P-H |
|---|---|
| Series | E3 |
| Type | Handpiece-end connector |
| Pin configuration | 10 signal + power contacts |
| Housing colour | Black / White |
| Tail / hose | flexible or rigid hose |
| Mating half | E3 plug-in connector |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
