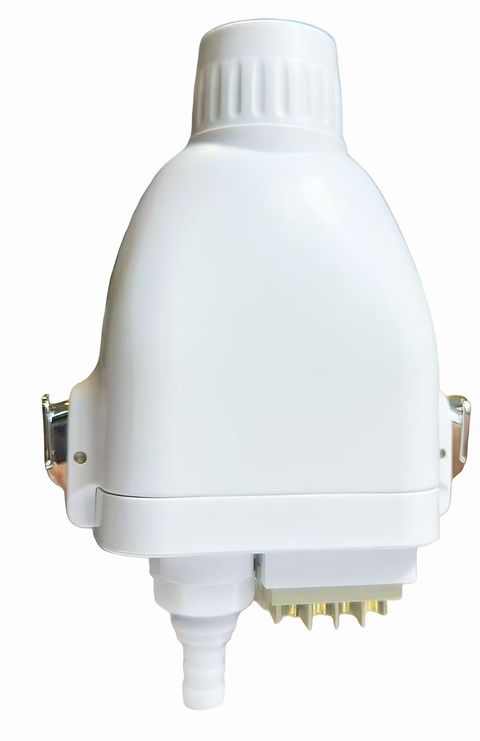

E3 Series 10-Pin Plug-in Connector
The E3 Series 10-Pin connector — the plug half of the E3 interface — is supplied in black / white. The E3 carries a ten-position signal block with the power contacts in one keyed shell. It fills the gap between the eight-pin D5 and the twelve-pin D4.
- Matched plug-in connector for handpieces that need ten signal lines plus power in a single mated pair
- Keyed shell — mates one way only, no reversed insertion
- 10 signal + power contacts carried in a single mated pair
- Black / White housing; flexible or rigid hose
- OEM colour, logo and pin-out options on request
Request quotation for KMD-E3-10P
Or send the mating-socket photo to info@kmdconnector.com — we confirm the variant before you order.
Overview
The E3 Series 10-Pin connector — the plug half of the E3 interface — is supplied in black / white. The E3 carries a ten-position signal block with the power contacts in one keyed shell. It fills the gap between the eight-pin D5 and the twelve-pin D4.
It is used on handpieces that need ten signal lines plus power in a single mated pair. Ten signal positions let a handpiece report multiple sensor channels without an auxiliary cable. It is often the drop-in upgrade when a device gains a sensor but keeps its mechanical envelope.
Order it together with its mating half — E3 plugs and handpiece-end connectors are sold as a matched pair, so keying and pin-out always line up.
Specifications
| Model | KMD-E3-10P |
|---|---|
| Series | E3 |
| Type | Plug-in connector |
| Pin configuration | 10 signal + power contacts |
| Housing colour | Black / White |
| Tail / hose | flexible or rigid hose |
| Mating half | E3 handpiece-end |
| Certification | CE / RoHS / UL |
| MOQ | 200 pcs (OEM) · 50 pcs (distributor) · 5 pcs (repair) |
| Lead time | 15 working days after deposit |
Frequently asked questions
Which machines does this connector fit?
It is designed for handpieces that need ten signal lines plus power in a single mated pair. Interface compatibility depends on the pin-out and keying of your handpiece, so send us a photo of the mating socket or the machine model before ordering; we will confirm the match in writing.
Is this a complete connector or half of a pair?
This listing is the plug half. The mating handpiece-end half is a separate part number; order both for a guaranteed keyed pair.
Can you supply samples before a bulk order?
Yes. Samples are available for evaluation, and the sample cost is normally credited against the first production order.
Can the colour, logo or pin-out be customised?
Housing colour and laser marking are tooling-dependent and can be quoted; pin-out changes require a minimum quantity because they change the contact block.
What is the MOQ and lead time?
Both depend on the series and configuration. Send your annual volume and target date and we will return a firm quotation with a production schedule.
